Wireless Set No 88 WS 88 WS88

PURPOSE AND FACILITIES

The Wireless Set No. 88 is a small lightweight man-pack RT set for short range communication.
It may also be used as a ground station and for working from vehicles at rest or on the move.
There are two versions of the set, Type A with an olive drab control panel and Type B with a black control panel.
The difference lies in their frequency ranges (see below)

The set is frequency modulated, the maximum deviation being 15 kc/s Side tone is provided.
The complete equipment, including the battery, is fully tropical and can withstand immersion in salt water

The set is carried in the operators left-hand pouch which also provides stowage for a collapsible rod aerial and an instructional card (ZA.32991 Wireless Set No 88. Instructions Working No 2 Metal.
The battery and microphones, receivers, etc. are carried in the right-hand pouch.
A short wire “invisible aerial is also carried in this pouch.

FREQUENCY
Typo A and Type B sets both work on four spot frequencies, as follows : -

Wireless Set No 88 Type A
Channel A 42.15 Mc/s
Channel B 41.40 Mc/s
Channel C 40.90 Mc/s
Channel D 40.20 Mc/s

Wireless Set No. 88 Type B
Channel E 39.70 Mc/s
Channel F 39.30 Mc/s
Channel G 38.60 Mc/s
Channel H 38.01 Mc/s

RANGE OF WORKING
A range of up to 1 1/2 miles may be expected using the 4 ft. rod aerial, but this will vary considerably with the nature of the terrain and the climate. The range with the "invisible" wire aerial compares quite favorably with the 4 ft. rod.

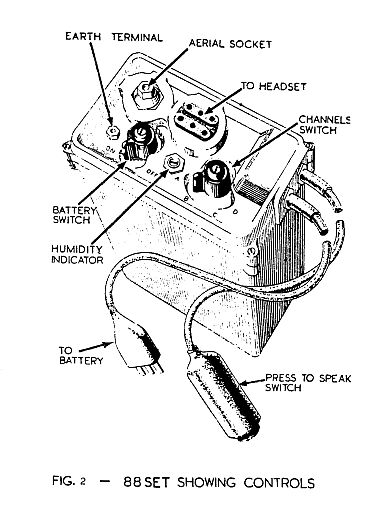

88 Set 1.jpg (43446 bytes)

Data and Circuit
available Details Below
As a Download

Click Here


The Information Consists of  the Following :-

Circuit Diagram 88 Set
Circuit Diagram Power Supply and Audio Amplifier
Working Instructions and Purpose
Layouts
Component Lists
Block Diagram
Block Diagram Interconnecting to 19 Set
Channels
Operators Fault Location
Suggested Power Supply Circuit
Suggested Modifications
